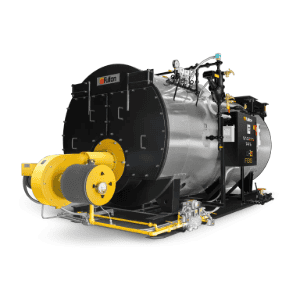

FBS Horizontal Firetube Boiler
(1t/h to 6t/h)
The FBS boiler’s furnace, located well below the water level, provides a large safety margin. The water probe, immersed in the boiler pressure vessel, prevents false water levels and gives the boiler a compact, clean appearance.
The three-pass wet-back, corrugated furnace design offers a large furnace heating surface for efficient heat transfer.
Enhanced Performance and Control
– Good load change tolerance and high efficiency.
– Large steam space for superior steam quality.
– Fully automated control system with BAS connection port.
Features▸
Parameters▸
Features▸
- Lowest Cost of Ownership
- Best-in-Class Efficiency
- Capable of Meeting All Emission Standards
- Trim Options for Virtually any User Requirement
- Customizable Controls
- Burner Packages for Multiple Fuel Types
Parameters▸
- Models: FB-S1-1.0 TO FB-S6-1.25
- Output: 1t/h to 6t/h
- Standard MWP: 1.0MPa, 1.25MPa, 1.6MPa, 2.5MPa,
- Fuel Option: Light oil, Heavy oil, Natural gas, Town gas and Dual-fuel
