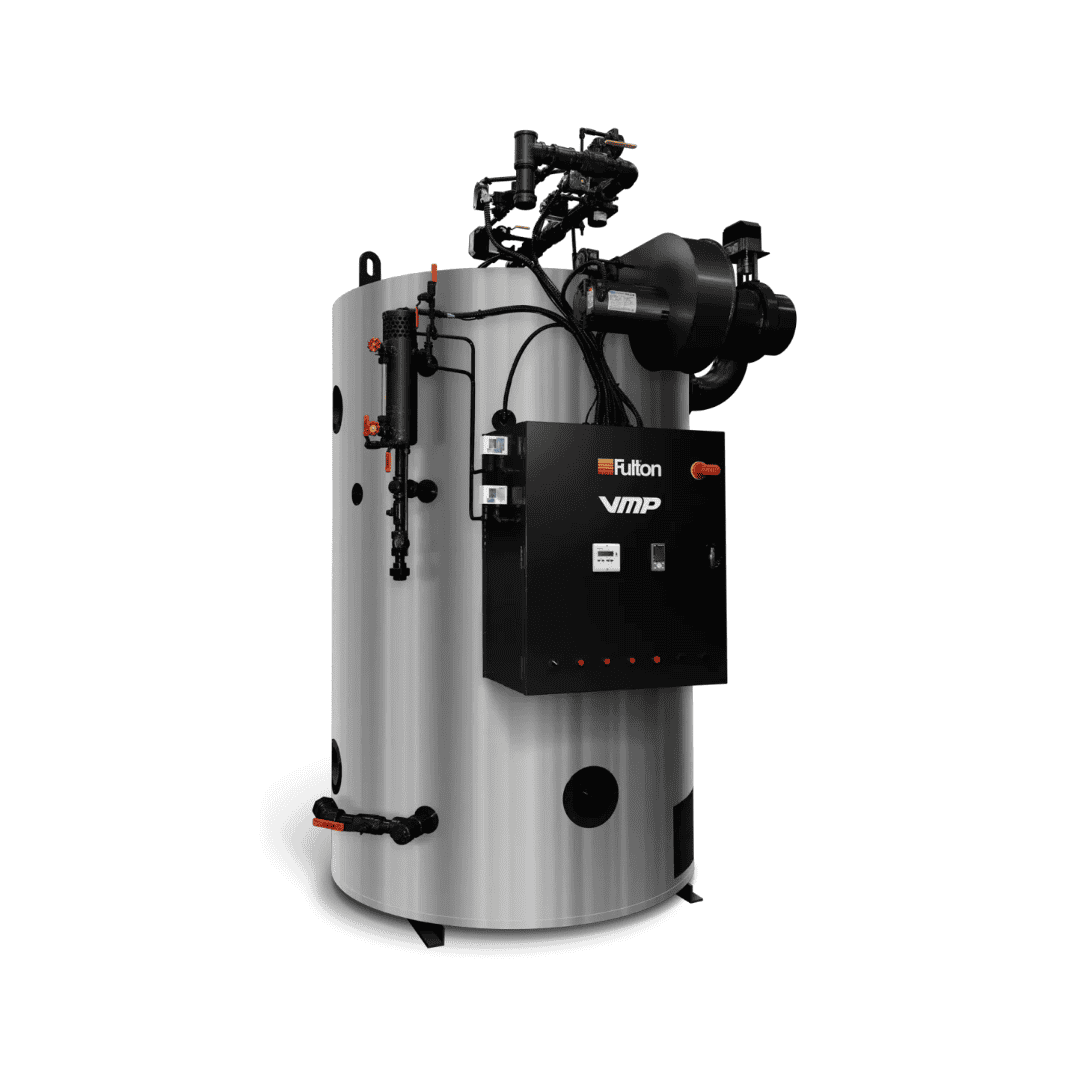

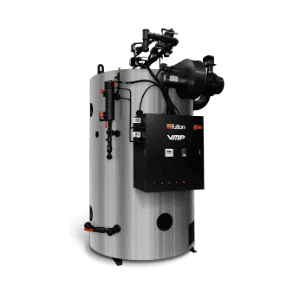

VMP Vertical Multi-Port Boiler
(0.5t/h to 4t/h)

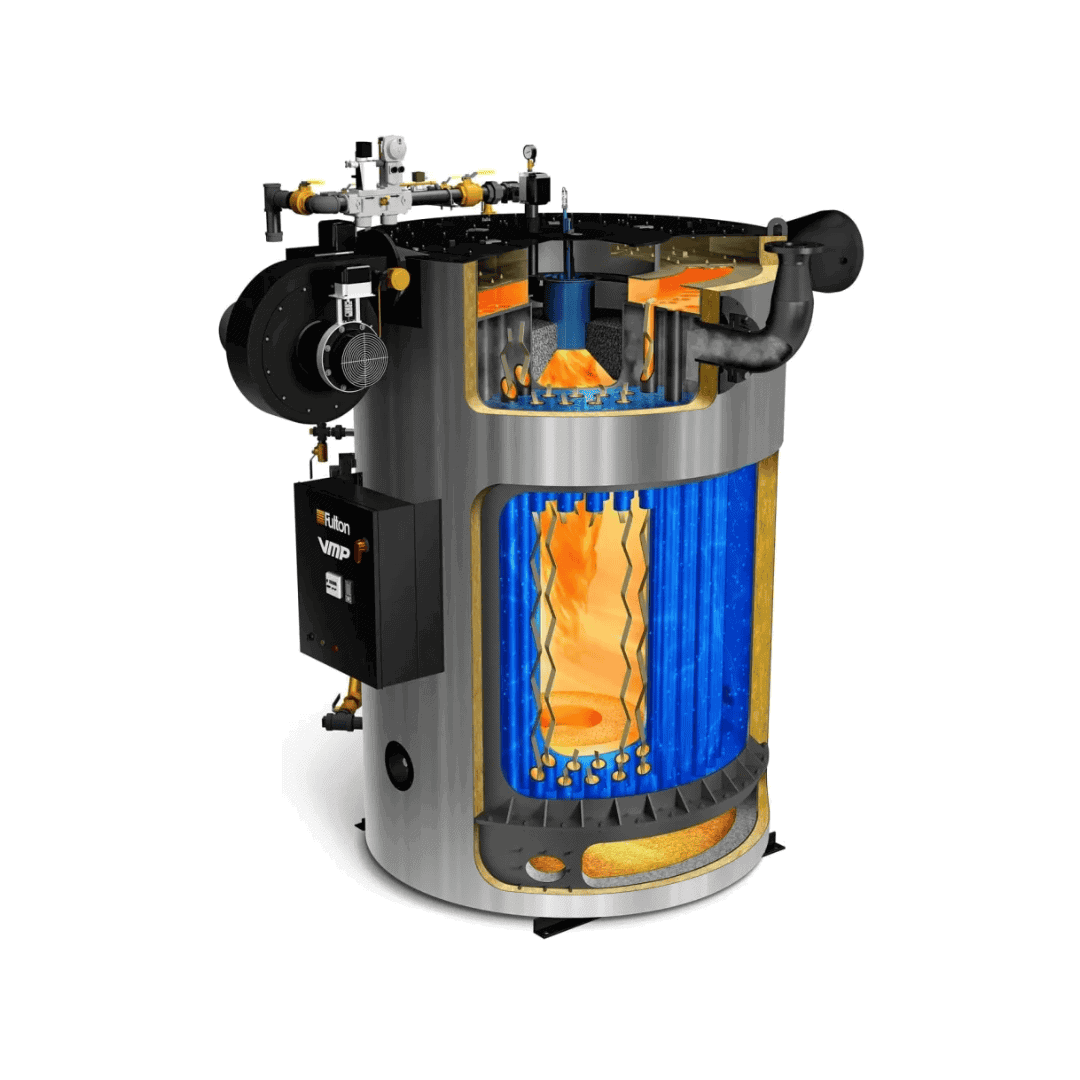

The VMP™ is Fulton’s Vertical Multi-Port boiler. Rugged, robust, and reliable vertical tubeless design with a pressure vessel thickness 30% greater than ASME requirements and heavy-walled schedule 80 flue pipes.
The VMP boiler is available in multiple fuels as well as features and options to ensure maximum seasonal efficiency.
Better by Design
The Rugged tubeless design allows the VMP to have exceptional value over the lifetime of the boiler, with fuel to steam efficiencies up to 84%, steam quality greater than 99%, and linkageless controls with turndowns up to 8:1.
Features▸
Parameters▸
Features▸
- Efficiencies up to 84%
- No Tubes to Replace
- Small Footprint – Compact Design
Parameters▸
- Fuel Options: Natural Gas , Dual Fuel , Propane , #2 Fuel Oil , Bio-Fuel
- Fuel Input – Natural Gas (CFH): 1594 – 5979
- Fuel Input – Propane (CFH): 638 – 2392
- Fuel Input – #2 Oil (CFH): 11.4 – 42.8
- Models: VMP-40 – VMP-150
- Steam Output (LB/HR): 1380 – 5175
- Output (MBH): 1339 – 5022
- Water Content – Operating (GAL): 153 – 749
