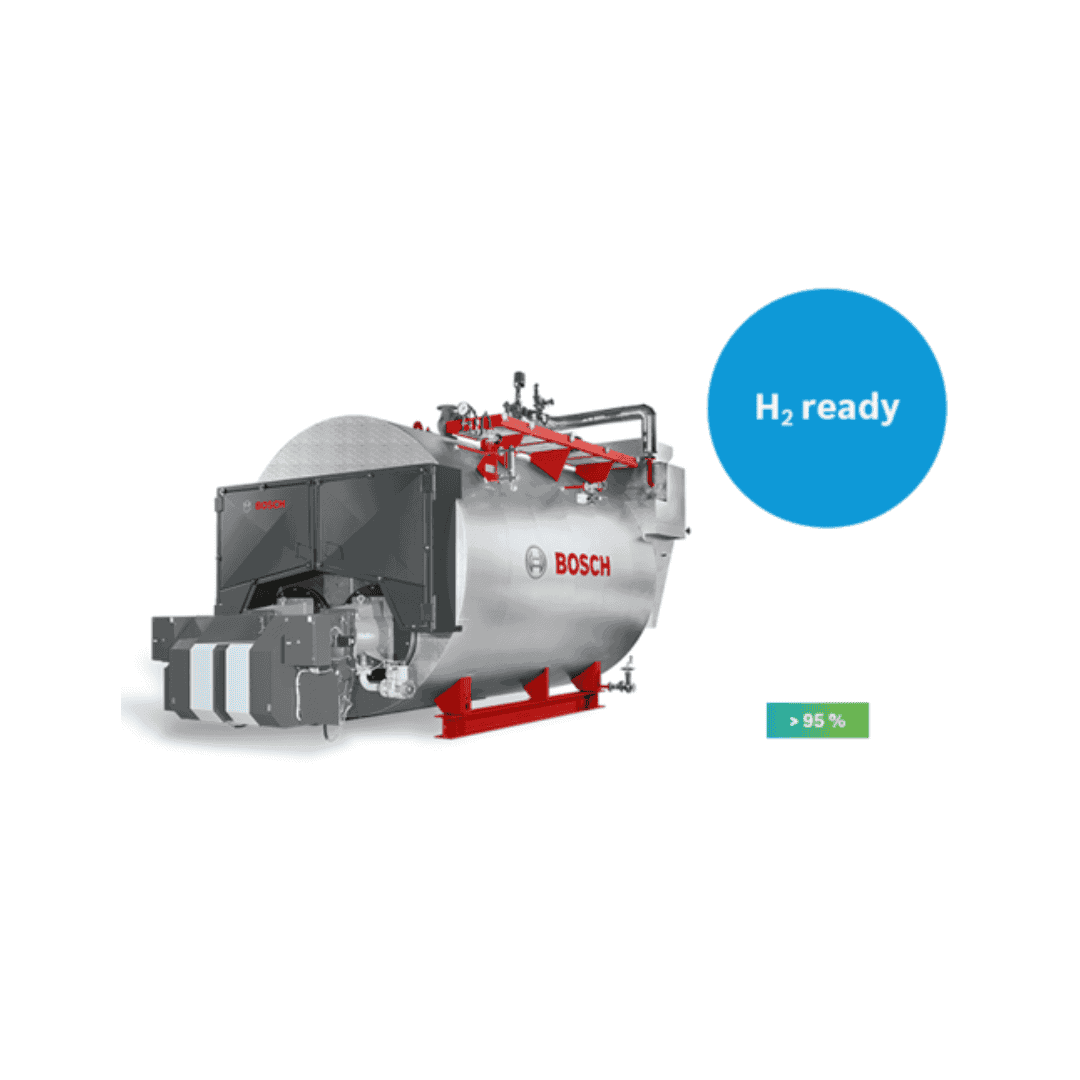

Universal Steam Boiler ZFR, ZFR-X

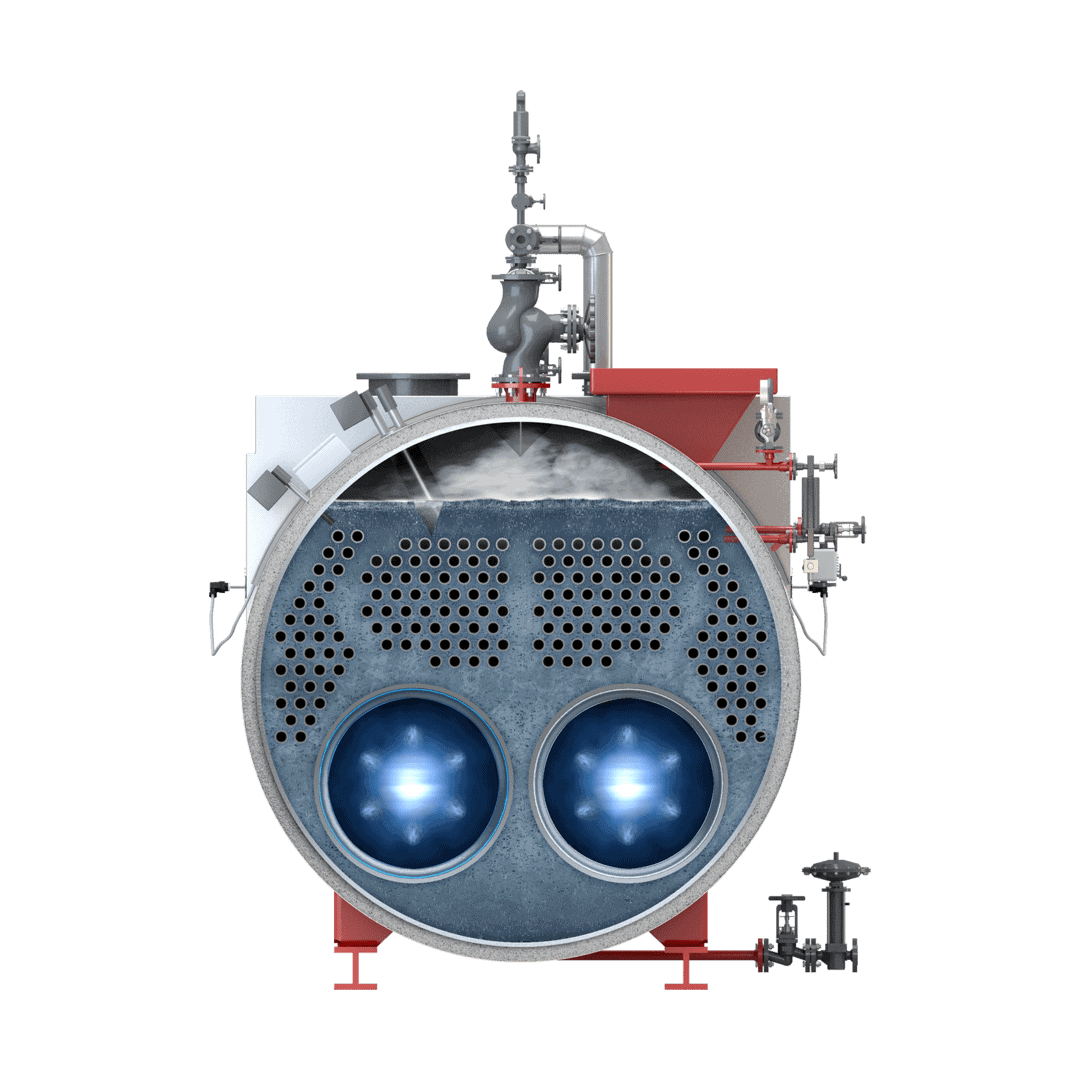

The UNIVERSAL ZFR steam boiler is a 3-pass shell boiler featuring two flame tubes and completely separate flue gas paths. It is ideal for applications requiring a reliable steam and heat supply with high output. Typical application areas include energy suppliers, public buildings, processing industries, and commercial businesses across all sectors.
Features▸
Parameters▸
Features▸
- High level of efficiency due to 3-pass technology and integrated economizer
- Effective heat insulation concept
- Pollutant-reduced combustion thanks to the use of highly developed firing systems and careful matching of the best boiler and burner combination and flame tube geometry
- Stable supply and durable design Made in Germany
- Project-specific equipment and optional components, for example superheated steam generation
Parameters▸
- High-pressure saturated steam as the heat transfer medium
- Three-pass double-flame tube/smoke tube design
- Output range of 18,000 to 55,000 kg/h
- Safety pressure up to 30 bar
- Maximum operating temperature of 235 °C
- Supports gas, oil, bio gas, bio oil, and hydrogen as energy sources
